BHLHB5 (BHLHE22) (NM_152414) Human Tagged ORF Clone
CAT＃: RG222046
- TrueORF®
BHLHE22 (tGFP-tagged) - Human basic helix-loop-helix family, member e22 (BHLHE22)
ORF Plasmid: DDK
"NM_152414" in other vectors (6)
Need custom modification / cloning service?
Get a free quote
CNY 4370.00
Product images
Specifications
| Product Data | |
| Type | Human Tagged ORF Clone |
| Tag | TurboGFP |
| Synonyms | Beta3; Beta3a; BHLHB5; CAGL85; TNRC20 |
| Vector | pCMV6-AC-GFP |
| E. coli Selection | Ampicillin (100 ug/mL) |
| Mammalian Cell Selection | Neomycin |
| Sequence Data |
>RG222046 representing NM_152414
Red=Cloning site Blue=ORF Green=Tags(s) TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC GCCGCGATCGCC ATGGAGCGCGGGATGCACCTCGGTGCAGCGGCCGCCGGCGAGGACGACCTCTTCCTGCACAAGAGCCTGA GCGCCTCCACCTCCAAGCGCTTGGAAGCGGCTTTCCGCTCCACGCCCCCGGGCATGGACCTGTCCCTGGC GCCGCCGCCTCGGGAACGCCCGGCGTCCTCCTCCTCGTCGCCCCTGGGCTGCTTCGAGCCGGCTGACCCC GAGGGGGCAGGGCTGCTGTTGCCGCCGCCTGGAGGAGGCGGCGGCGGCAGCGCGGGAAGTGGCGGCGGCG GCGGCGGCGGGGTGGGTGTCCCCGGGCTGCTAGTAGGTTCAGCCGGCGTTGGGGGCGACCCTAGCCTAAG CAGCCTGCCGGCCGGGGCCGCCCTTTGCCTCAAGTACGGCGAAAGCGCGAGCCGGGGCTCGGTGGCCGAG AGCAGCGGCGGCGAGCAGAGCCCCGACGACGACAGCGACGGTCGCTGCGAGCTCGTGCTGCGGGCCGGAG TAGCCGACCCGCGGGCCTCCCCGGGAGCGGGAGGTGGTGGCGCGAAGGCAGCCGAGGGCTGCTCCAATGC CCACCTCCACGGCGGCGCCAGCGTCCCCCCGGGGGGCCTGGGCGGCGGCGGCGGCGGGGGTAGCAGCAGC GGTAGCAGTGGCGGCGGTGGCGGTAGCGGTAGCGGCAGCGGCGGCAGCAGCAGCAGCAGCAGCAGCAGCA GCAAGAAATCCAAAGAGCAAAAGGCGCTGCGGCTTAACATCAATGCCCGAGAGCGCCGGCGGATGCACGA CCTGAACGACGCGCTGGACGAGCTGCGCGCGGTGATCCCCTACGCGCACAGCCCCTCGGTGCGAAAGCTC TCCAAGATCGCCACGCTGCTGCTCGCCAAGAACTACATCCTCATGCAGGCGCAGGCCCTGGAGGAGATGC GGCGCCTAGTCGCCTACCTCAACCAGGGCCAGGCCATCTCGGCTGCCTCCCTGCCCAGCTCGGCGGCTGC AGCGGCAGCAGCTGCTGCCCTGCACCCGGCGCTCGGCGCCTACGAGCAGGCAGCCGGCTACCCGTTCAGC GCCGGACTGCCCCCGGCTGCCTCCTGCCCGGAGAAGTGCGCCCTGTTTAACAGCGTCTCCTCCAGCCTCT GCAAACAGTGCACGGAGAAGCCT ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA >RG222046 representing NM_152414
Red=Cloning site Green=Tags(s) MERGMHLGAAAAGEDDLFLHKSLSASTSKRLEAAFRSTPPGMDLSLAPPPRERPASSSSSPLGCFEPADP EGAGLLLPPPGGGGGGSAGSGGGGGGGVGVPGLLVGSAGVGGDPSLSSLPAGAALCLKYGESASRGSVAE SSGGEQSPDDDSDGRCELVLRAGVADPRASPGAGGGGAKAAEGCSNAHLHGGASVPPGGLGGGGGGGSSS GSSGGGGGSGSGSGGSSSSSSSSSKKSKEQKALRLNINARERRRMHDLNDALDELRAVIPYAHSPSVRKL SKIATLLLAKNYILMQAQALEEMRRLVAYLNQGQAISAASLPSSAAAAAAAAALHPALGAYEQAAGYPFS AGLPPAASCPEKCALFNSVSSSLCKQCTEKP TRTRPLE - GFP Tag - V |

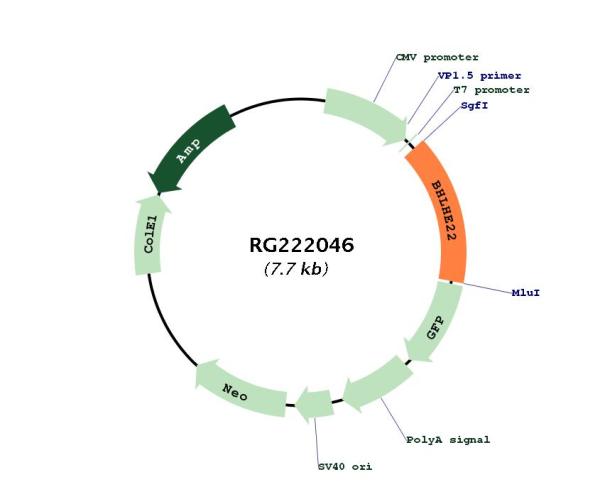

| Restriction Sites | SgfI-MluI Cloning Scheme for this gene |
| ACCN | NM_152414 |
| ORF Size | 1143 bp |
| OTI Disclaimer | The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info |
| OTI Annotation | This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene. |
| Product Components | The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water). |
| Reconstitution | 1. Centrifuge at 5,000xg for 5min. 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA. 3. Close the tube and incubate for 10 minutes at room temperature. 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom. 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C. |
| Note | Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required. |
| Reference Data | |
| RefSeq | NM_152414.5 |
| RefSeq Size | 3388 bp |
| RefSeq ORF | 1146 bp |
| Locus ID | 27319 |
| UniProt ID | Q8NFJ8 |
| Protein Families | Druggable Genome |
| Gene Summary | This gene encodes a protein that belongs to the basic helix-loop-helix (bHLH) family of transcription factors that regulate cell fate determination, proliferation, and differentiation. A similar protein in mouse is required for the development of the dorsal cochlear nuclei, and is thought to play a role in in the differentiation of neurons involved in sensory input. The mouse protein also functions in retinogenesis. [provided by RefSeq, Oct 2016] |
Documents
| Product Manuals |
| FAQs |
| SDS |
Resources
Other Versions
| SKU | Description | Size | Price |
|---|---|---|---|
| RC222046 | BHLHE22 (Myc-DDK-tagged)-Human basic helix-loop-helix family, member e22 (BHLHE22) |
CNY 3656.00 |
|
| RC222046L1 | Lenti-ORF clone of BHLHE22 (Myc-DDK-tagged)-Human basic helix-loop-helix family, member e22 (BHLHE22) |
CNY 6056.00 |
|
| RC222046L2 | Lenti-ORF clone of BHLHE22 (mGFP-tagged)-Human basic helix-loop-helix family, member e22 (BHLHE22) |
CNY 5890.00 |
|
| RC222046L3 | Lenti-ORF clone of BHLHE22 (Myc-DDK-tagged)-Human basic helix-loop-helix family, member e22 (BHLHE22) |
CNY 5890.00 |
|
| RC222046L4 | Lenti-ORF clone of BHLHE22 (mGFP-tagged)-Human basic helix-loop-helix family, member e22 (BHLHE22) |
CNY 5890.00 |
|
| SC306391 | BHLHE22 (untagged)-Human basic helix-loop-helix family, member e22 (BHLHE22) |
CNY 3656.00 |
